Wholesale C17200 high strength beryllium copper alloy Manufacturers, Companies

C17200 beryllium copper provides the highest strength of all available copper-beryllium alloys. It has electrical and thermal conductivity considerably greater than other high-strength copper alloys with an ultimate tensile strength that can exceed 200 ksi (1380 MPa)

Send Inquiry

Product Description

High-Performance Beryllium Copper Alloy

Beryllium copper is a copper-based alloy material without tin, with beryllium as the main element. It is a type of copper alloy that is strengthened by age precipitation. It contains 1.8-2% beryllium and small amounts of nickel, chromium, titanium and other elements. After quenching and aging treatment, its strength can reach 1250-1500MPa, approaching the level of medium-strength steel.

C17200 BERYLLIUM COPPER Details

C17200 BERYLLIUM COPPER provides the highest strength of all available copper-beryllium alloys. It has electrical and thermal conductivity considerably greater than other high-strength copper alloys with an ultimate tensile strength that can exceed 200 ksi (1380 MPa), hardness approaching HRC 45, and a minimum electrical conductivity of 22% IACS (International Annealed Copper Standard).

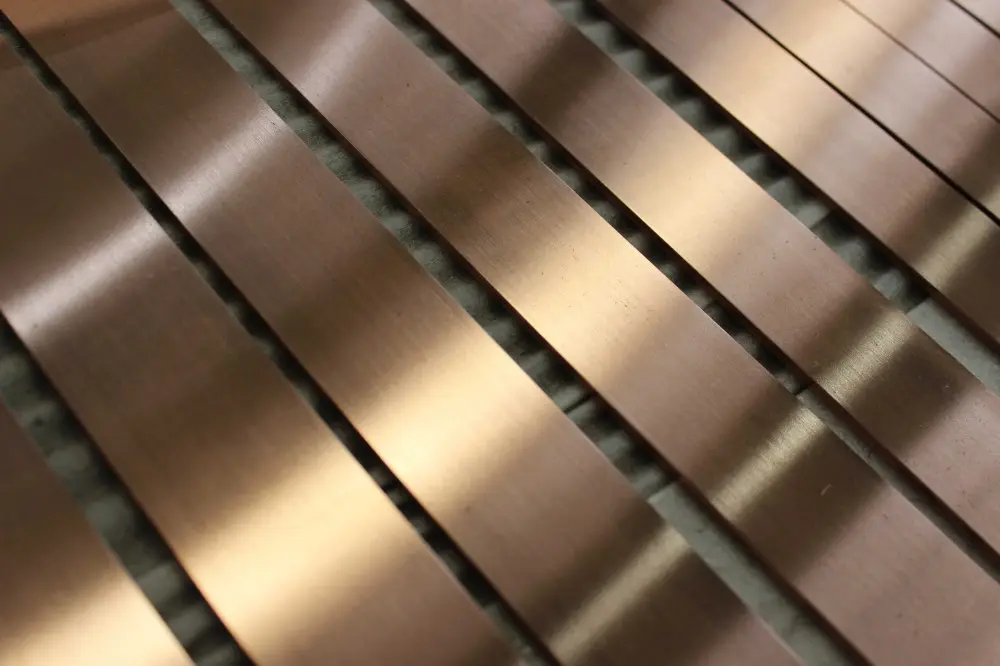

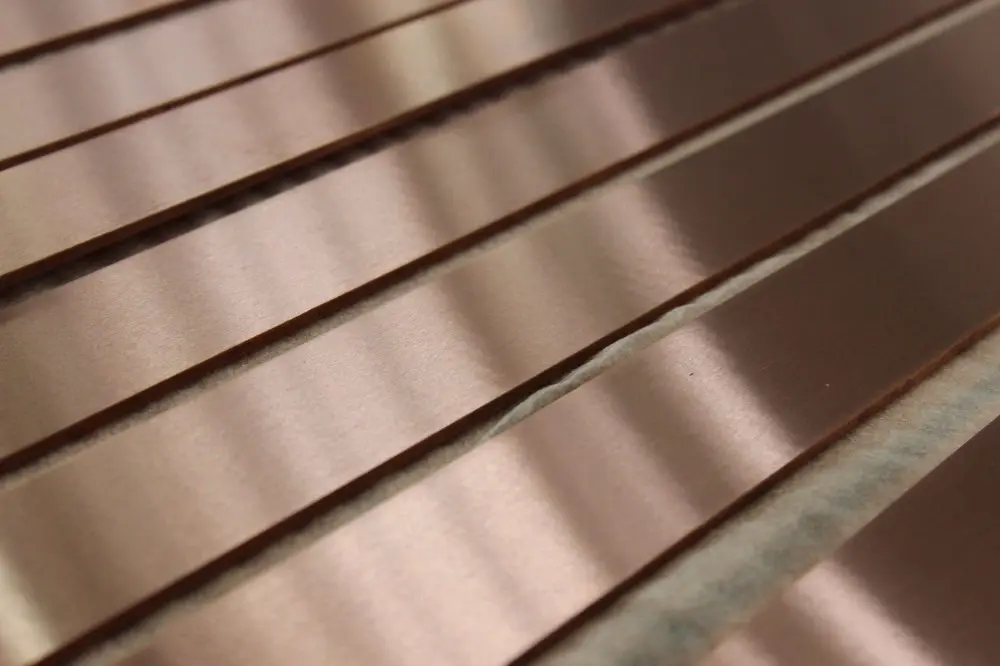

This versatile material is available in several forms including strip, rod, tube, wire, bar, plate, forging and extrusion. It is widely used in critical applications ranging from oil and gas drilling components to aerospace bushings, automotive connectors, and computer processor socket contacts.

Chemical Element Composition

Element	Be	Si	Al	Other Elements
Min (%)	1.8	-	-	Cu: REM Ni+Co ≥ 0.2 Ni+Co+Fe ≤ 0.6
Max (%)	2.0	0.2	0.2	Cu: REM Ni+Co ≥ 0.2 Ni+Co+Fe ≤ 0.6

Physical Properties

Elastic Modulus:	19000 Ksi
Electrical Conductivity:	25-30% IACS
Density:	8.36 g/cm³
Thermal Conductivity (25℃):	105 W/mk

Frequently Asked Questions

1. What is the maximum strength of C17200 Beryllium Copper? C17200 Beryllium Copper can achieve an ultimate tensile strength exceeding 200 ksi (1380 MPa) after quenching and aging treatments, which is comparable to medium-strength steel.

2. What are the primary elements in this alloy? The alloy is copper-based with beryllium (1.8-2.0%) as the main strengthening element. It also contains small amounts of Nickel, Cobalt, and Iron.

3. In what industrial applications is C17200 used? It is widely used in aerospace bushings, oil and gas drilling components, automotive electrical connectors, and computer processor socket contacts due to its high strength and conductivity.

4. How does the electrical conductivity of Beryllium Copper compare to other alloys? C17200 offers a minimum electrical conductivity of 22% IACS, which is significantly higher than most other high-strength copper alloys.

5. What forms of C17200 are available for manufacturing? The material is highly versatile and can be supplied as strips, rods, tubes, wires, bars, plates, forgings, and extrusions.

6. What is the density and thermal conductivity of this material? It has a density of 8.36g/cm³ and a thermal conductivity of approximately 105W/mk at 25℃.
